BORMILL EQUIPMENT

Machine Capacities

Bormill Inc. operates heavy-duty machining equipment designed for oversized, precision industrial components. Browse our machine capacities below.

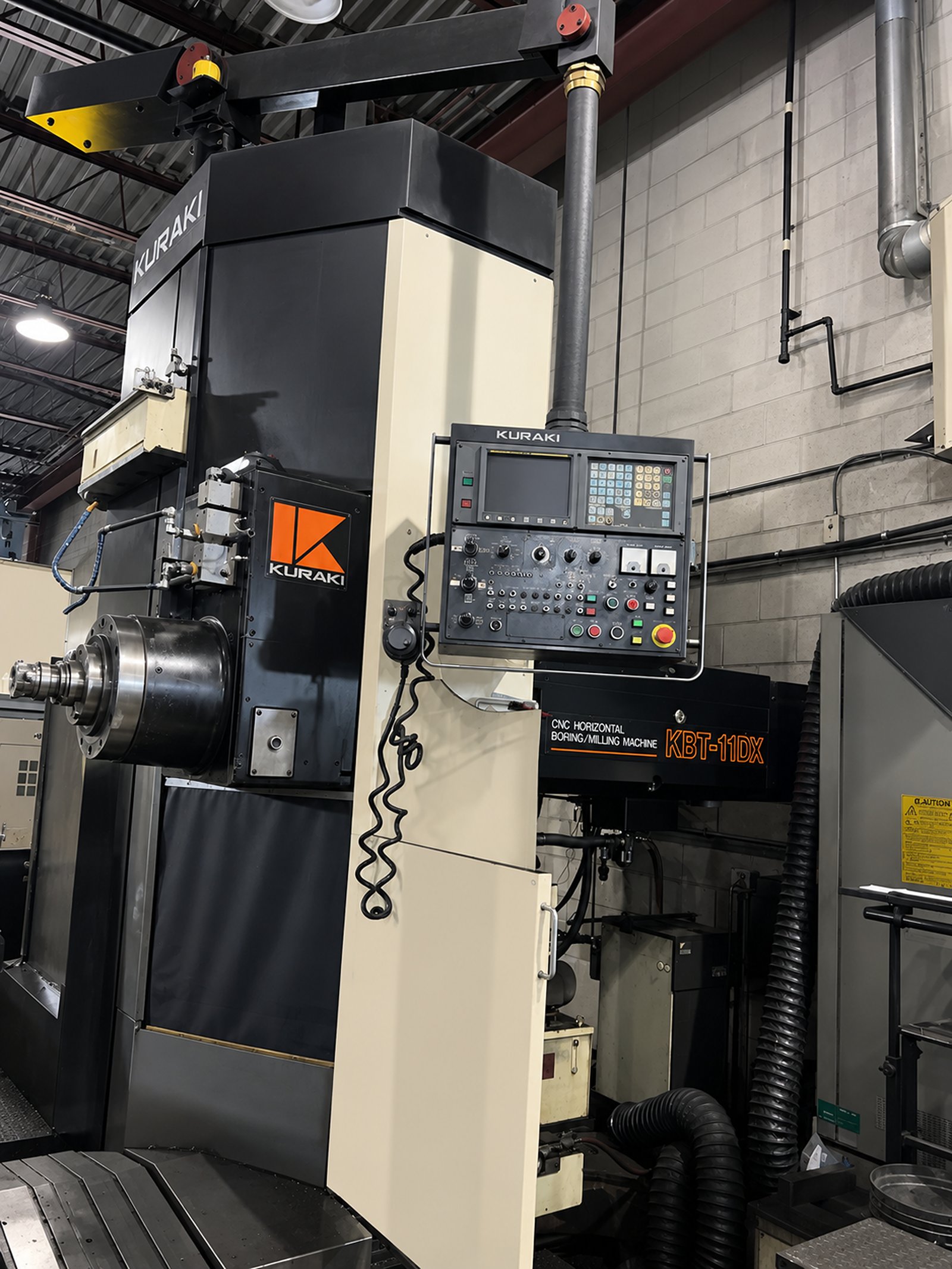

Floor Type Horizontal Boring Mill

     CNC Boring Mill

Engineered for precision machining of large-scale industrial components. Its rigid construction and powerful spindle provide outstanding stability for heavy parts, making it ideal for high-accuracy boring, milling, and drilling operations.

  • X-Axis Travel 66.93"
  • Y-Axis Travel 49.21"
  • Z-Axis Travel 45.28"
  • Spindle Speed 2,500 RPM
  • Maximum Part Weight 11,000 lbs
Request a Quote

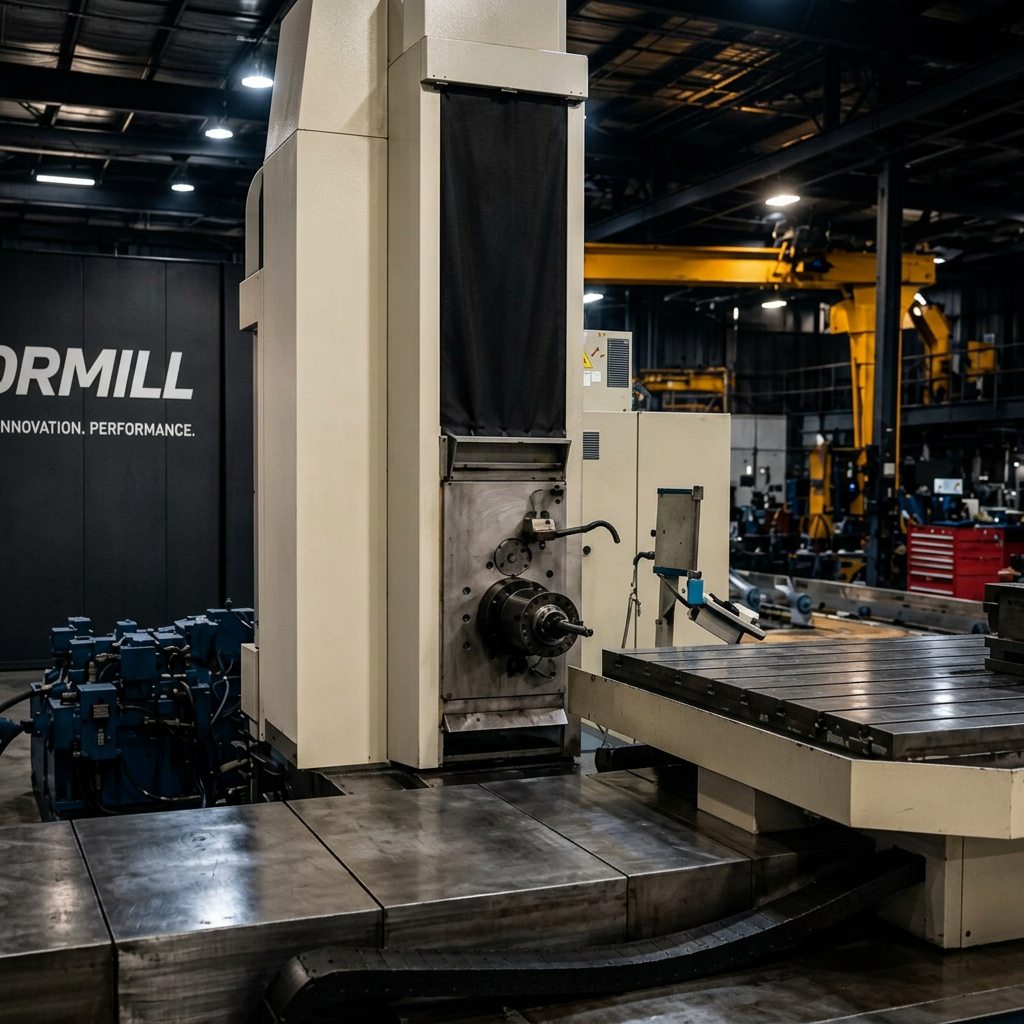

Horizontal Boring Mill

     CNC  Boring Mill

Optimized for precision boring, drilling, milling, and facing of heavy industrial components. Its rigid table-type design provides outstanding stability for oversized parts, while the rotary table enables precise indexing for multi-face machining

  • Rotary Table Size 49″ x 63″
  • Maximum Table Load 22,000 lbs
  • X-Axis Travel 98″
  • Y-Axis Travel 63″
  • Z-Axis Travel 28″
  • W-Axis Travel 39″
Request a Quote

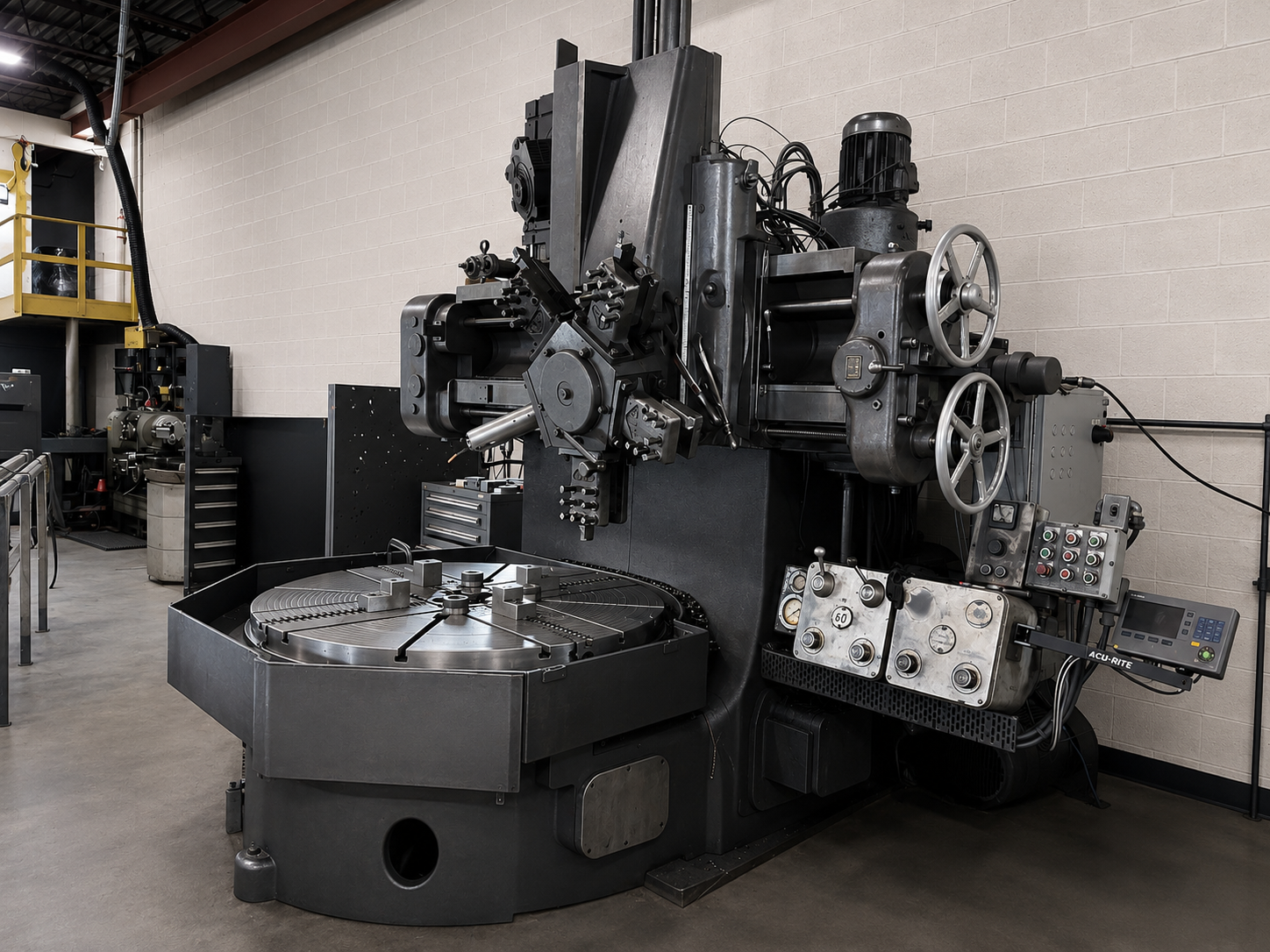

Vertical Boring Mill

Vertical Turning & Boring Machine

Specializing in large diameter turning and boring for heavy industrial rings, flanges, gear blanks, and circular housings.

  • Table Size 60″
  • Maximum Swing 64″
  • Max Height Under Cross-Slide 24″
  • Turret Slide Travel 26″
  • Table Speeds 6.7 to 150 RPM
  • Machine Feeds 0.005″ to 0.250″ / rev
  • Main Motor 30 HP
  • Taper Generating Facility Available
Request a Quote
Large Horizontal Lathe

Large vertical  Lathe

Heavy turning of shafts, rollers, cylinders and oversized components.

  • Table (Chuck) Diameter 70" to 96"
  • Maximum Swing Capacity 114" to 144"
  • Max Height Under Rail 55" to 62.5"
  • Spindle/Table Speeds Up to 125 RPM
  • Machine Feeds Variable Feed Rates
  • Drive System High-Torque AC Drive
Request a Quote
CNC Vertical Machining Centre

CNC Vertical Machining Centre

Precision CNC milling, drilling and tapping for production and repair work.

  • Table Size 29.5″ x 63″
  • Max Table Load 3,300 lbs
  • X-Axis Travel 60″
  • Y-Axis Travel 30″
  • Z-Axis Travel 24″
  • Spindle Nose to Table 5.9″ – 30.5″
  • Spindle Speed 6,000 RPM
  • Headstock 2-Speed Geared
  • Spindle Motor 35 HP
Request a Quote
Fabrication & Welding

Fabrication & Welding

Fabrication, welding, repairs and reverse engineering for heavy industrial equipment.

  • Maximum Fabrication Size Large Scale
  • Maximum Weight 12 Ton Capacity
  • Welding Processes Multi-Process
  • Materials Steel, Iron, Alloys
  • 12 Ton Overhead Crane Available
  • Industrial Repair Full Service
Request a Quote

Additional Shop Capabilities

Have a Large Machining Project?

Send us your drawings and specifications and our team will recommend the most suitable machine for your project.
